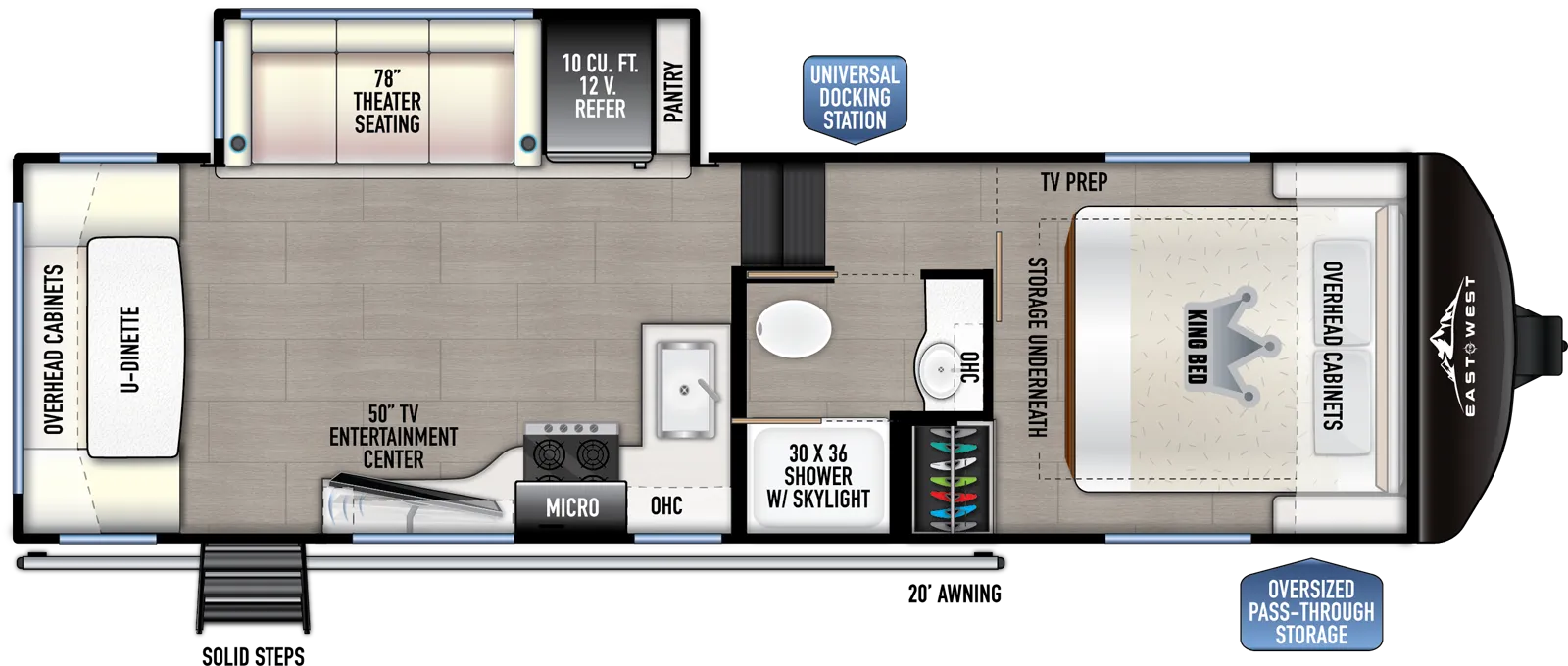

26RD Floorplan

Hitch Weight
1,235 lb.
GVWR
11,435 lb.
UVW
8,024 lb.
CCC
3,411 lb.
Exterior Length
29' 9"
Exterior Height
12' 8"
Exterior Width
96"
Fresh Water
64 gal.
Gray Water
88 gal.
Black Water
44 gal.
Awning Size
20'

Specifications Definitions

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Note: Specifications are subject to change without notice.



  • Tandara Half-Ton Features & Options

    • <strong>TANDARA LUXURY PACKAGE</strong>
    • Aluminum Entry Steps
    • 50" LED Smart Television w/ Swing Arm
    • Water Shutoff Valves on All Plumbing Fixtures
    • Universal All-In-One Docking Station
    • *Outside Shower w/ Quick Connect Hose and Spray Nozzle
    • *Waste Tank Flush
    • *PowerFill Fresh Water Tank for Dry Camping
    • *Exterior Water Pump Switch
    • *Siphon Fill or Sanitize Fresh Water Tank From Vessel Using Water Pump
    • *EZ Winterization Valve
    • *Battery Kill Switch
    • 60,000 BTU On-Demand Tankless Water Heater
    • <strong>TANDARA EXTENDED SEASON PACKAGE</strong>
    • 15,000 BTU Main A/C
    • Wired & Framed for 2nd A/C
    • 35,000 BTU Furnace
    • Ductless Flooring - No Heat Ducts on the Floor
    • Heated, Insulated & Enclosed Underbelly & Dump Valves w/ Circulating Heat
    • Radiant Technology Composites™ Insulation in Roof, Front Cap & Underbelly
    • Formaldehyde Free Fiberglass Insulation in Roof, Front Cap & Main Floor
    • Azdel® Laminated Sidewalls, Slide-out End Walls, Slide-out Roofs & Rear Wall w/ 2 lb. Block Foam Insulation
    • Dual Attic Vents
    • <strong>TANDARA TOWING PACKAGE</strong>
    • Seamless High Visibility LED Front Cap Lights
    • Marine Grade 10" LED Hitch Light
    • Spring Hangers w/ V-Bracket Reinforcement
    • Automotive Style Riveted Wheel Skirts
    • LED Marker Lights
    • LED Taillights w/ Back-Up Lights
    • Rear View Camera Prep
    • <strong>EXTERIOR</strong>
    • Alphaply™ TPO Roofing w/ Lifetime Warranty
    • Gel Coated Fiberglass Exterior
    • Double-Welded Aluminum Framed Sidewalls, Rear Wall, Front Bulkhead Wall & Slide-out Rooms
    • Double-Welded & Fully Framed Window, Entry Door, Cargo Door and Slide-out Openings
    • Double-Welded Aluminum Framed Floors
    • 50 AMP Electrical Service
    • Detachable 50 AMP Power Cord w/ LED Power Indicator Light
    • 60 AMP Converter with Lithium or Lead Acid Battery Selector Switch
    • Adjustable Power Awning w/ LED Lights
    • High-Capacity Water Pump w/ Interior & Exterior Switch
    • EZ Access Low Point Drain Valves
    • Clear Cap on Sewer Termination
    • Extended Sewer Hose Carrier
    • Dual 30 lb. LP Bottles
    • LP Quick-Connect
    • Winegard® Air 360+ TV Antenna w/ Wi-Fi Prep
    • Exterior Cable/Satellite Hookup in Pass-Through Storage or Outdoor Kitchen Compartments
    • <strong>INTERIOR</strong>
    • Pre-Drilled & Screwed Cabinetry
    • Ball Bearing Full Extension Drawer Guides
    • Vinyl Flooring in Living Area, Kitchen, Bathroom & Bedroom (No Carpet)
    • 10 Cubic Foot 12v Refrigerator
    • Deep-Seated Stainless Steel Farmhouse Sink
    • Roll-Up Stainless Steel Drying Rack
    • High-Rise Kitchen Faucet w/ Pull-Down Sprayer
    • Porcelain Toilet w/ Foot Flush
    • Large Medicine Cabinet w/ Mirror
    • Extra Large Seamless Lav Top w/ Undermounted Sink
    • 70" x 80" Serta® King Bed w/ Fitted Bedspread
    • Bedside Electrical Outlets & USB/USB-C Charging Stations
    • Oversized Underbed Storage
    • Bedroom Cable/Satellite Hookup
    • LED Interior Lighting
    • <strong>OPTIONS</strong>
    • 60" x 80" Queen Bed w/ Fitted Bedspread
    • Theater Seating in place of Sofa (22 RK and 26 RD only)
    • 4 Point Electric Automatic Leveling System
    • Ducted 2nd A/C
    • 200 Watt Solar panel with 30 amp Controller
